Harwel HW3 Goods / Passenger LiftModel HW3

Harwel Harwel Class A Goods Passenger Lift Specification:
HW3CA Lift Specification

Our special Class A Goods/Passenger lift is manufactured for combined passenger and goods use, and bridges the gap between commercial passenger lifts and fixed platform hoists.

Lift car sizes can range from 1100mm x 1400mm with a load of 612kgs up to 4000kgs with car size configuration as required. These lifts have a speed of 0.4mps up to .8mps with a VVVF Drive.

The Model HW3 is fully disability compliant (AS1735.12).

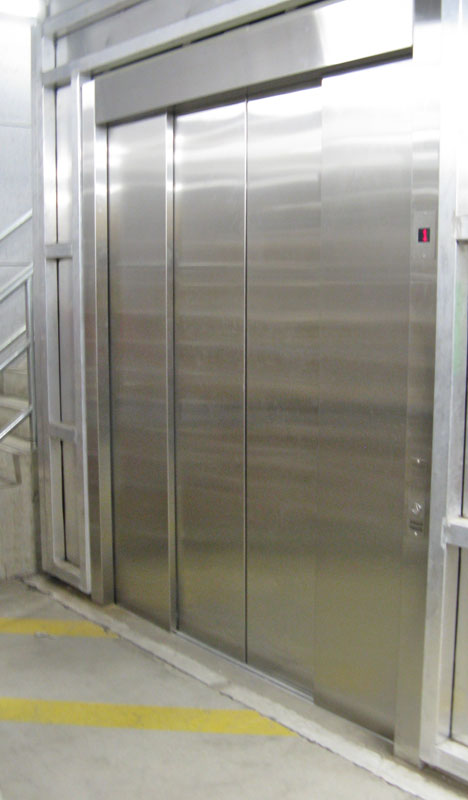

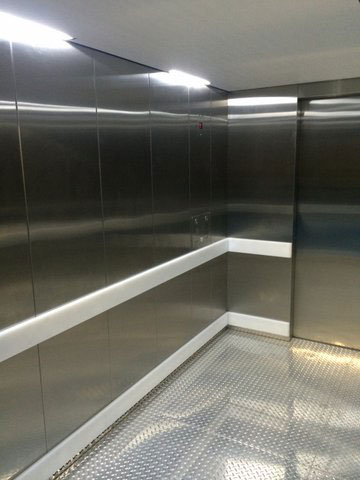

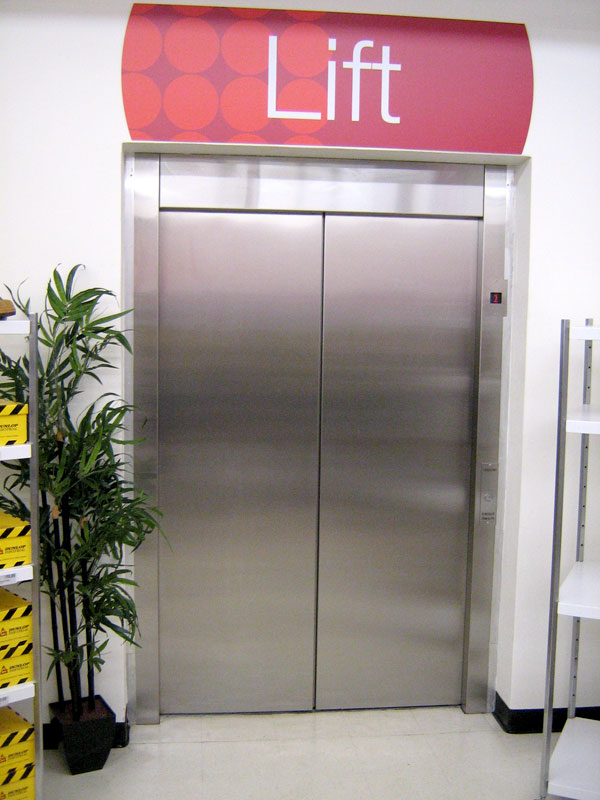

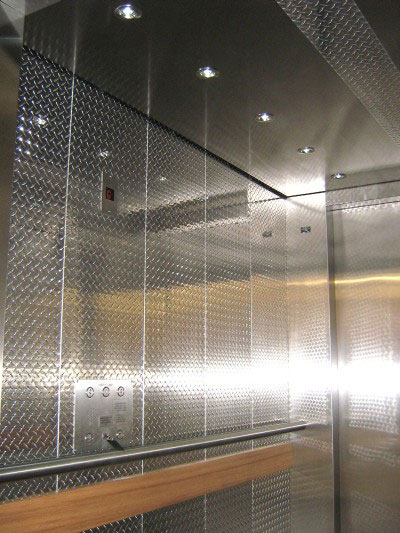

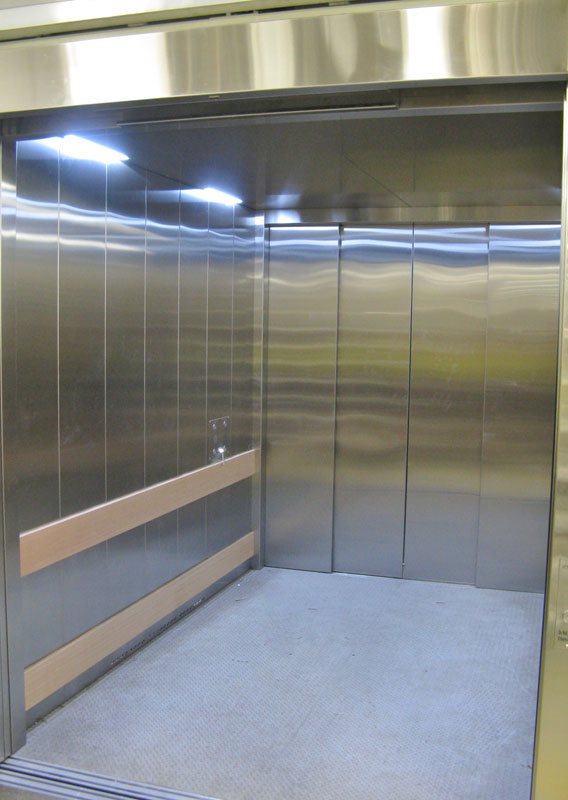

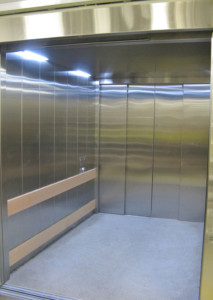

The lift car can be fitted out either as a passenger lift with stainless wall panels; laminated wall panels or timber veneer wall panels; all with mirror to one wall. Alternatively, most clients prefer the Goods/Passenger lifts to have wall finishes which will handle the trolleys and pallet jacks they load with. In this case, our most popular finish is the propeller plate (Hi polish) with two rows of timber or polyethylene buffers.

Flooring can be either our heavy duty vinyl or propeller plate.

For food hygiene areas, we manufacture the lift to your specific requirements.

We can install our Goods/Passenger lifts into shafts supplied by your builder or we can manufacture and install our Harwel structural aluminium shaft sheeted internally with a roof cap included. The shaft can then be sheeted externally by the builder if required with ‘firecheck’.
