Passenger Lifts HW03

Harwel Standard Passenger (Part 3) Lift Specification:
HW3 Passenger Lift

Our Harwel Model HW3 is a hydraulic lift with VVVF Drive (variable voltage variable speed) .6 mps with 140 starts per hour.

An Australian made, energy efficient, safe lift with quiet, smooth operation, able to accommodate the finishes required… what else could you ask for in a passenger lift?

Car wall paneling includes satin stainless, timber veneers, laminates, glass, painted glass, mirrors and specialty metals. Ceilings can be stainless and translucent, laminates, timbers, with energy efficient LED concealed strip lighting. Ventilation fans are concealed in the ceiling and mechanical ventilation holes at the bottom of the car can be hidden behind the stainless skirting.

Choice in designs of Car Operating Panels, mirror styles.

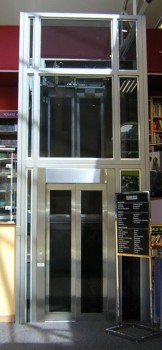

We can provide the enclosure (or shaft) of structural aluminium, epoxy finished to colour of choice with grey tinted or clear glass inserts. Alternatively, we could supply and install frame for the builder to clad.

Layout Plans

Harwel Standard Part 3 Lift Plans:

HW3 Passenger Lift Through Car 2 Levels
HW3 3 Floor with Single Car Opening

Harwel Passenger (Part 3) Lift Plans illustrating 2 floor single car opening, 13 persons (1000kg) showing pit plan, well plan, shaft elevation, level 2 landing door, and bottom floor landing door:

HW3 13 Passenger A Lift
HW3 13 Passenger B Lift

Harwel Passenger (Part 3) Emergency Lift for Class 9A Buildings illustrating pit plan, well plan, shaft elevation, level 2 landing door, and bottom floor landing door:

HW3 Emergency Lift for Class 9A Buildings

The Harwel Difference:

• Our lifts are pre fabricated in our factory to minimise installation time. For example a 2 floor single entry lift can be installed in 7-10 days, depending on location.
• Our lifts car opening can be adjacent (right or left handed) or through car openings.
• Harwel Lifts do not require ‘bond blocks’ to be built in by the builder or cut-outs for landing plates. Harwel door jambs accommodate our landing plates. We do require cut outs for our doors and jambs to go into.
• For the emergency phone, Harwel will supply a single-sim GSM unit, whilst the customer is required to purchase and manage the sim card.

Note to Architects: Our design configurations are unlimited and we welcome your direct enquiry advising your specific requirements.

Harwel Harwel Class A Goods Passenger Lift Specification:
HW3CA Lift Specification

Our special Class A Goods/Passenger lift is manufactured for combined passenger and goods use, and bridges the gap between commercial passenger lifts and fixed platform hoists.

Lift car sizes can range from 1100mm x 1400mm with a load of 612kgs up to 4000kgs with car size configuration as required. These lifts have a speed of 0.4mps up to .8mps with a VVVF Drive.

The Model HW3 is fully disability compliant (AS1735.12).

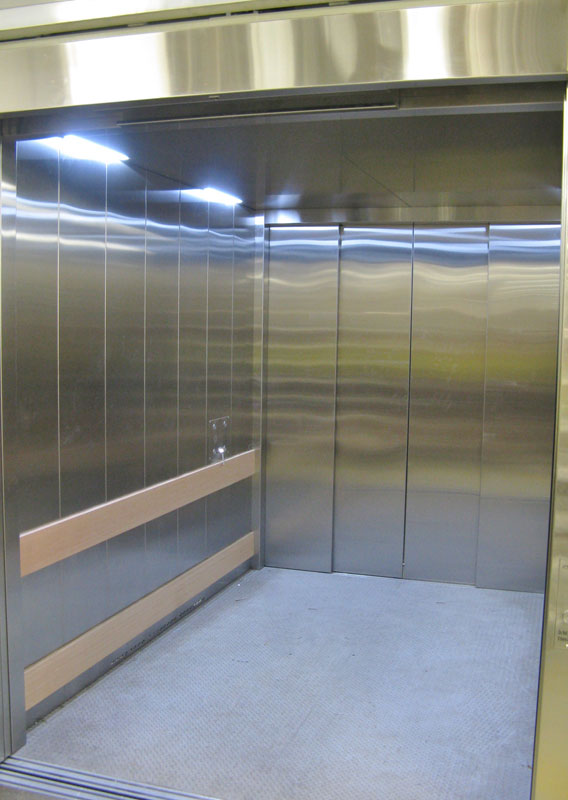

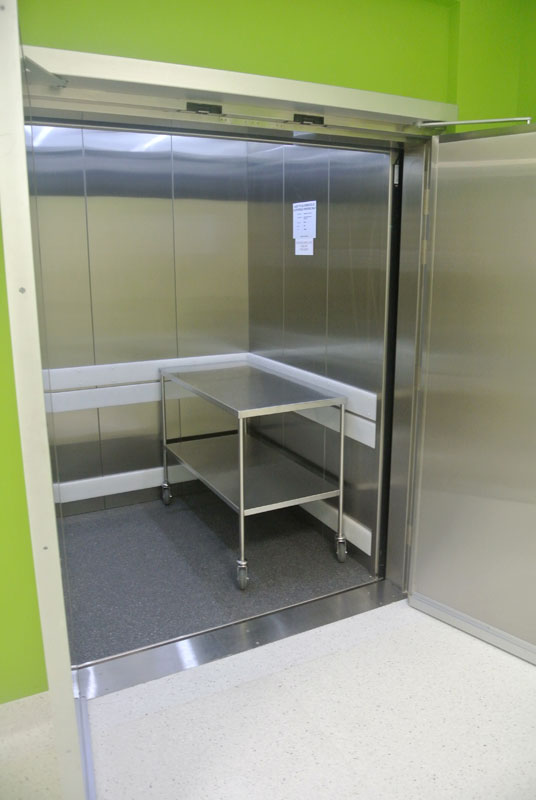

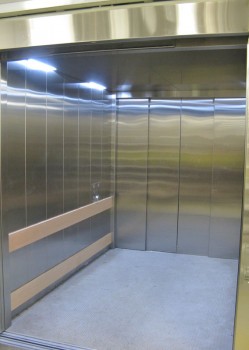

The lift car can be fitted out either as a passenger lift with stainless wall panels; laminated wall panels or timber veneer wall panels; all with mirror to one wall. Alternatively, most clients prefer the Goods/Passenger lifts to have wall finishes which will handle the trolleys and pallet jacks they load with. In this case, our most popular finish is the propeller plate (Hi polish) with two rows of timber or polyethylene buffers.

Flooring can be either our heavy duty vinyl or propeller plate.

For food hygiene areas, we manufacture the lift to your specific requirements.

We can install our Goods/Passenger lifts into shafts supplied by your builder or we can manufacture and install our Harwel structural aluminium shaft sheeted internally with a roof cap included. The shaft can then be sheeted externally by the builder if required with ‘firecheck’.

Commercial Lifts

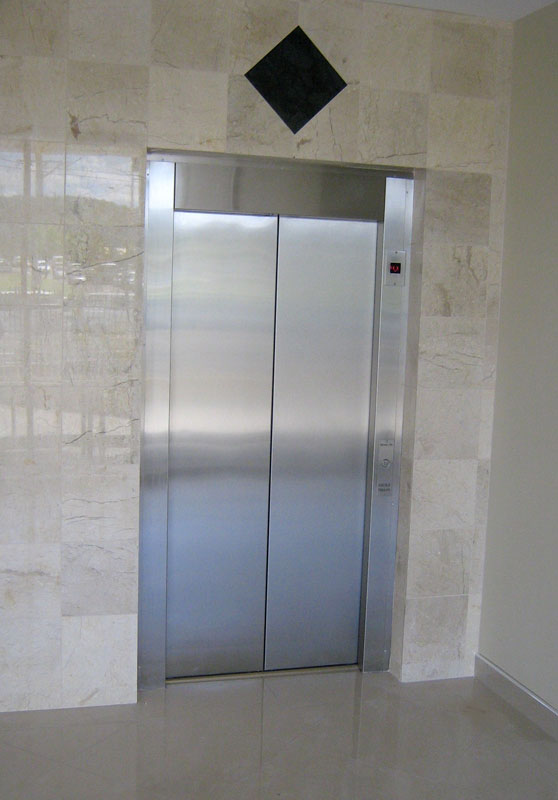

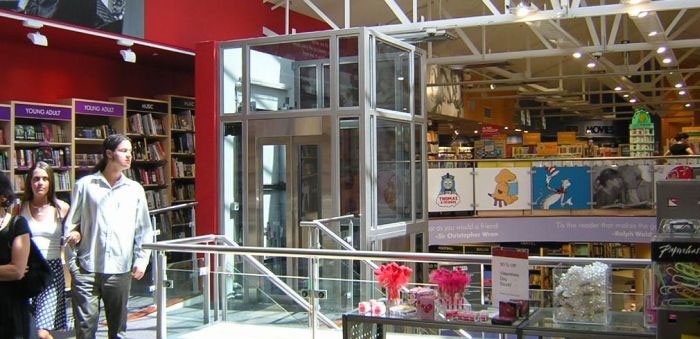

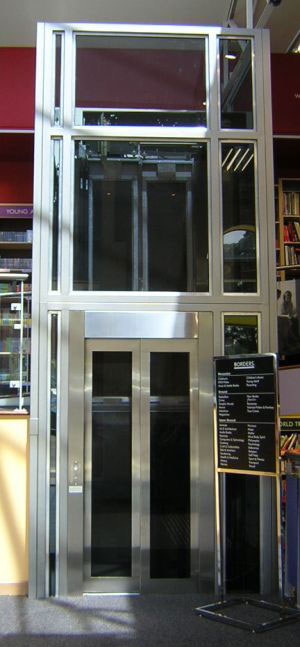

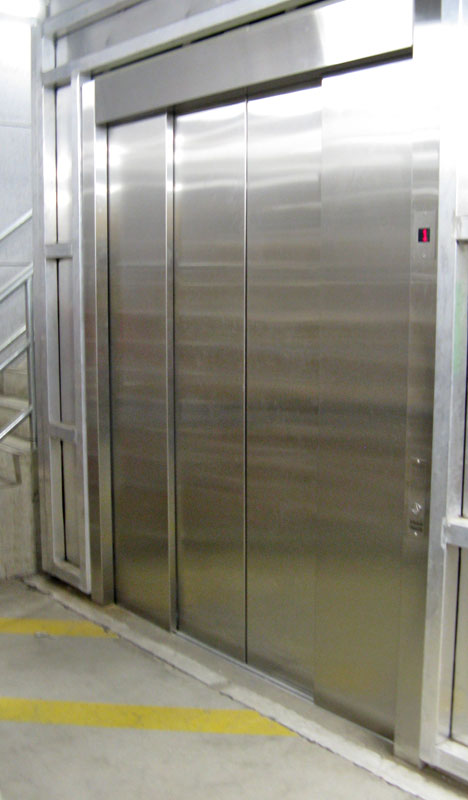

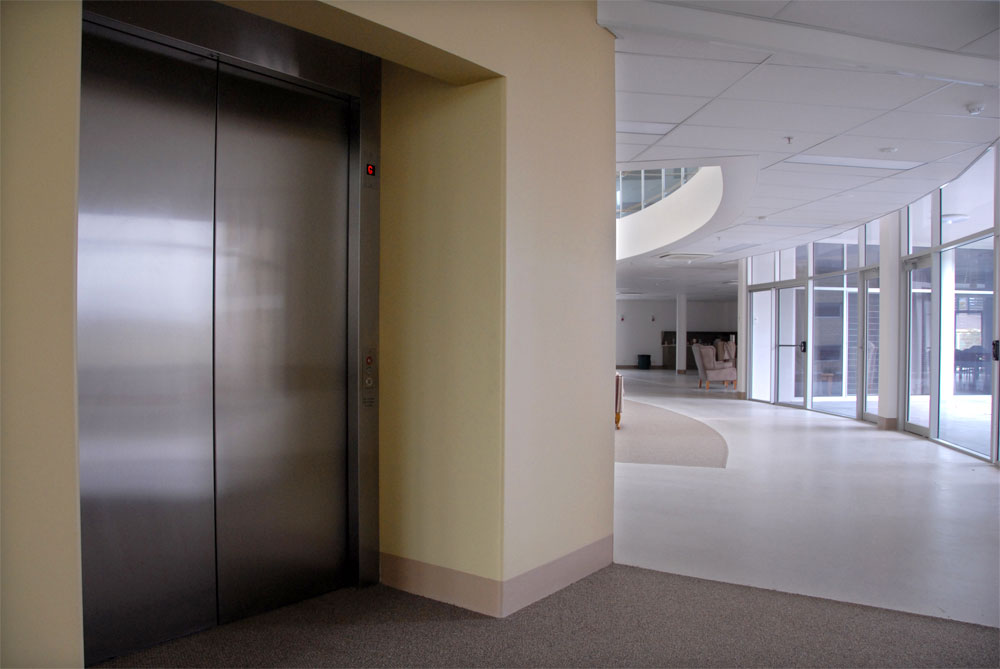

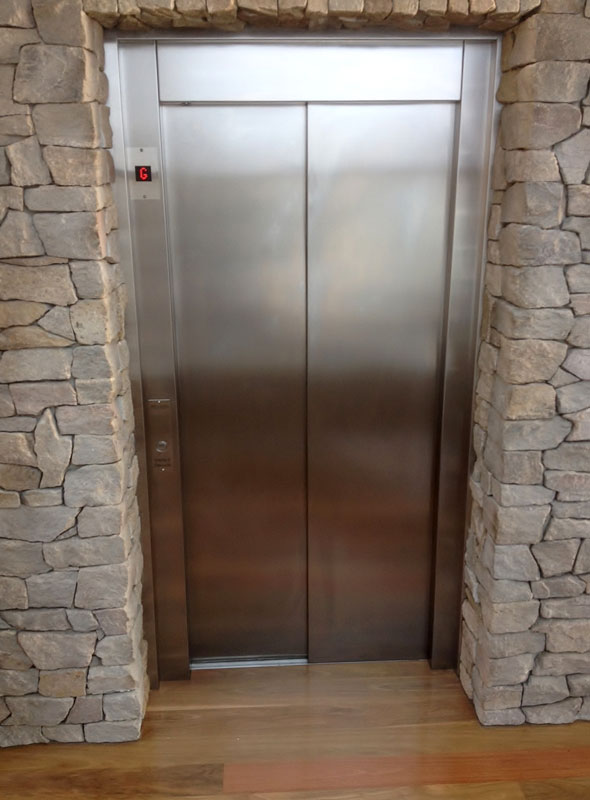

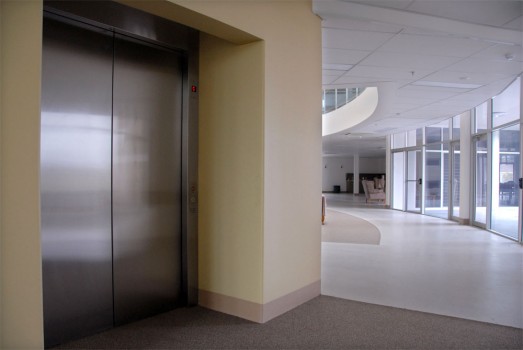

Harwel Commercial Lift installation examples:
